Introduction

The geosR package provides a generalized geostatistical workflow to calculate spatial resources (volume, metal/content tonnage, and average grades). This vignette demonstrates a complete, end-to-end evaluation using generated synthetic data, reflecting best practices for a Senior Geoscientist.

library(geosR)
library(sf)
library(terra)
library(stars)
library(ggplot2)

1. Exploratory Data Analysis (EDA) & Synthetic Data Generation

In a real-world scenario, you would import drillhole data via st_read or st_as_sf. Here, we synthesize a realistic spatial distribution representing a nickel laterite deposit.

set.seed(42)

# 1. Generate a generic project boundary (Area of Interest)
bbox <- st_bbox(c(xmin=0, xmax=1000, ymin=0, ymax=1000), crs=32748)
area <- st_as_sf(st_as_sfc(bbox))
area$ID <- "Block_A"

# 2. Generate random drillhole points across the area
pts <- st_sample(area, size = 150, type = "random")
drill_data <- st_as_sf(pts)

# 3. Simulate geological variables (Grade and Thickness)
# We use a spatial trend (higher grades in the NE) + random noise
coords <- st_coordinates(drill_data)
trend <- (coords[,1] + coords[,2]) / 2000

drill_data$grade <- rnorm(150, mean = 1.5 + trend, sd = 0.3)
drill_data$thickness <- rnorm(150, mean = 5 + (trend * 5), sd = 1.5)

# 4. Clean outliers (Best Practice: Remove spurious data before modeling)
# We use geosR's built-in outlier removal on the raw vectors
cln_grade <- no_outlier(drill_data$grade)

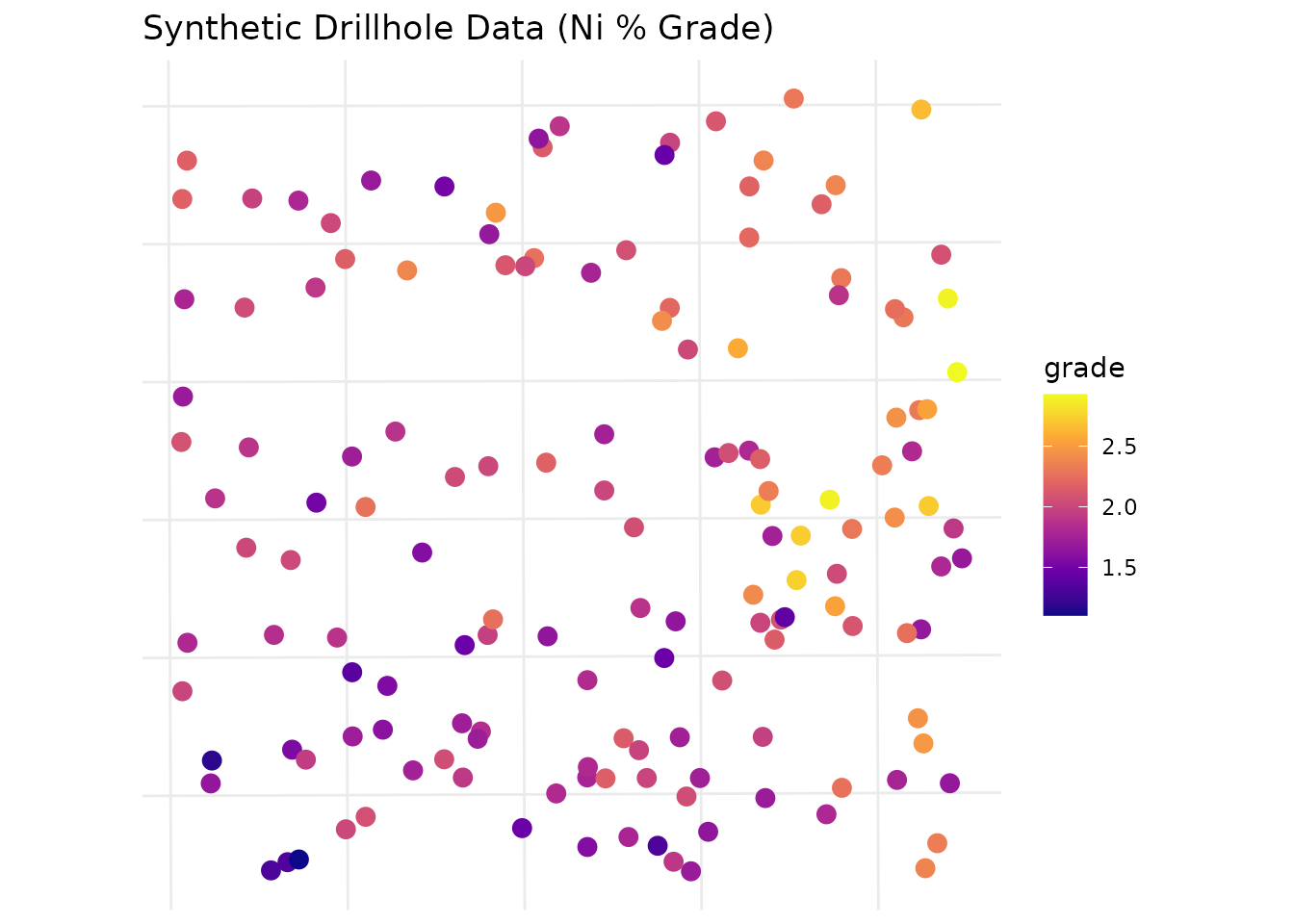

# Visualize the raw drillhole grade distribution
ggplot(drill_data) +
  geom_sf(aes(color = grade), size = 3) +
  scale_color_viridis_c(option = "plasma") +
  theme_minimal() +
  labs(title = "Synthetic Drillhole Data (Ni % Grade)")

2. Variogram Modeling

A rigorous geostatistical estimate requires a well-fitted variogram. We model the spatial continuity of the grade variable.

# Fit a spherical variogram model
# Note: In practice, parameters like 'cutoff' and 'sill' are iteratively refined via EDA.
var_model <- fit_var(
  data = drill_data,
  formula = grade ~ 1,
  cutoff = 600,
  width = 50,
  model_type = "Sph",
  sill = var(drill_data$grade) * 0.8, # Best practice: estimate sill from sample variance
  range = 300
)

# Plot the experimental variogram and the fitted model
plot(var_model$variogram, var_model$model, main="Spherical Variogram Model: Grade")

3. Ordinary Kriging (Block Modeling)

With our variogram established, we generate a block model grid and predict attributes into un-sampled locations.

# Initialize a 25x25m block model grid
calc_grid <- st_make_grid(area, cellsize = 25)

# Kriging for Grade
kriged_grade <- est_krige(
  data = drill_data,
  formula = grade ~ 1,
  grid = calc_grid,
  vgm_model = var_model$model,
  maxdist = 400, # Limit search radius
  nmin = 3       # Require at least 3 drillholes for an estimate
)
#> [using ordinary kriging]

# Kriging for Thickness (using same spatial model for simplicity)
kriged_thick <- est_krige(
  data = drill_data,
  formula = thickness ~ 1,
  grid = calc_grid,
  vgm_model = var_model$model,
  maxdist = 400,
  nmin = 3
)
#> [using ordinary kriging]

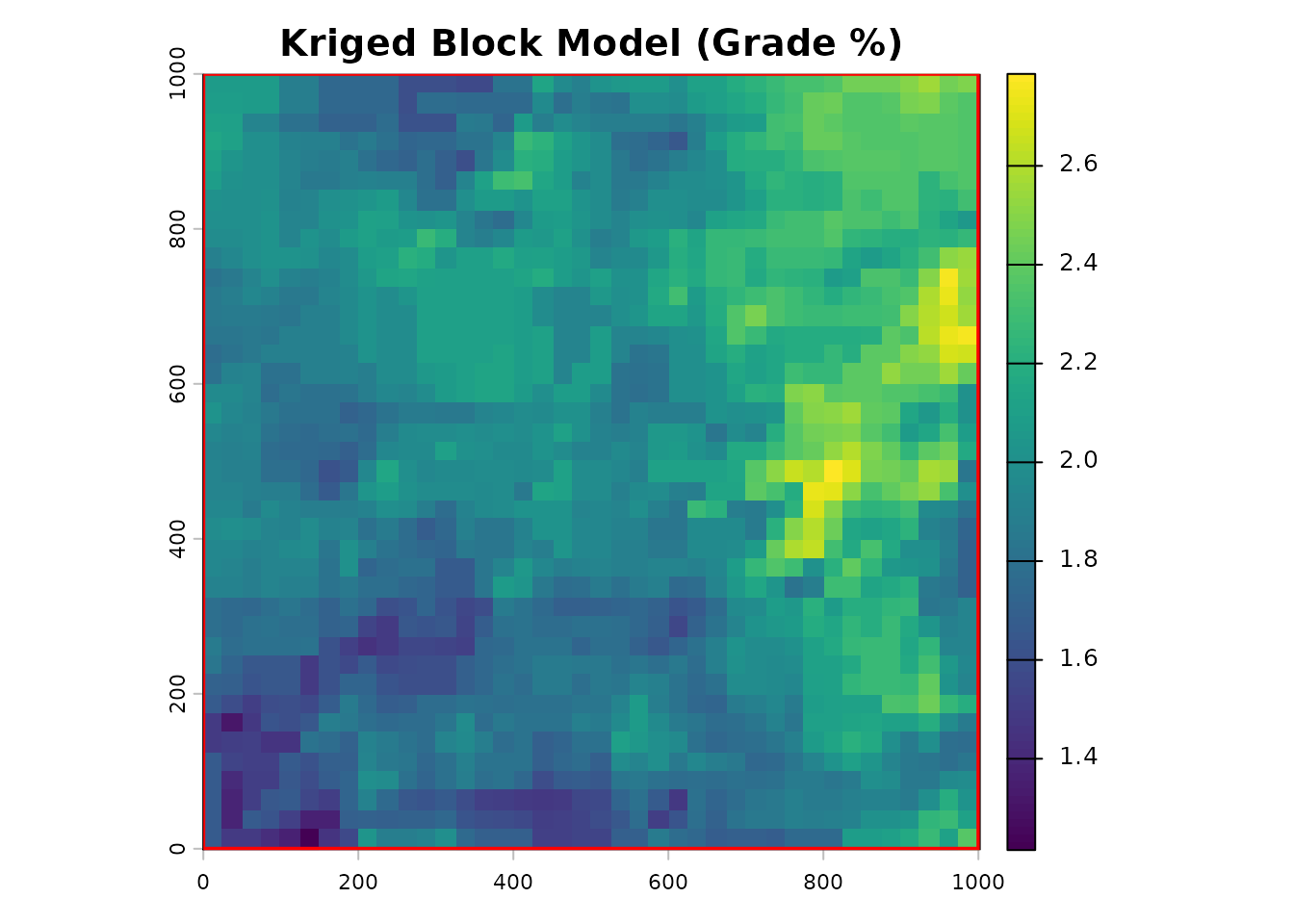

# Visualize the kriged Grade predictions
grade_raster <- as(st_rasterize(kriged_grade["var1.pred"]), "SpatRaster")
plot(grade_raster, main = "Kriged Block Model (Grade %)")
plot(st_geometry(area), add=TRUE, border="red", lwd=2)

4. Resource Calculation

We calculate the total metric tonnage contained within our boundary (area). We apply a specific gravity (density) of 1.6 for this material type (typical for laterite).

# Convert the sf predictions directly to terra SpatRasters for map algebra
thick_raster <- as(st_rasterize(kriged_thick["var1.pred"]), "SpatRaster")

# Execute core resource calculation
my_resources <- calc_res(
  raster_grade = grade_raster,
  raster_thickness = thick_raster,
  area = area,
  density = 1.6
)

# Review the tabular output (Polygon by Polygon)
knitr::kable(my_resources$table, digits = 2, format.args = list(big.mark = ","))

ID	area_m2	avg_thickness_m	expected_volume_m3	avg_grade	metal_content
1	1,003,472	7.61	7,635,003	1.98	24,151,553

5. Evaluation and Reconciliation

A senior geologist’s job doesn’t end at estimation. We must evaluate modeled resources against actual mining recovery to build confidence factors.

# Assume the plant reported 15,000 tonnes of metal content recovered from this block
eval_table <- ev_rest(my_resources$table, actual_production = 15000)

# Display the reconciliation factor
knitr::kable(eval_table[, c("ID", "metal_content", "actual_production", "recovery_factor")],
             digits = 3, format.args = list(big.mark = ","))

ID	metal_content	actual_production	recovery_factor
1	24,151,553	15,000	0.001

Note: A recovery factor of < 1.0 indicates over-estimation by the block model.

6. Spatial Reporting (Plots)

Finally, we generate standardized, presentation-ready maps for management reporting.

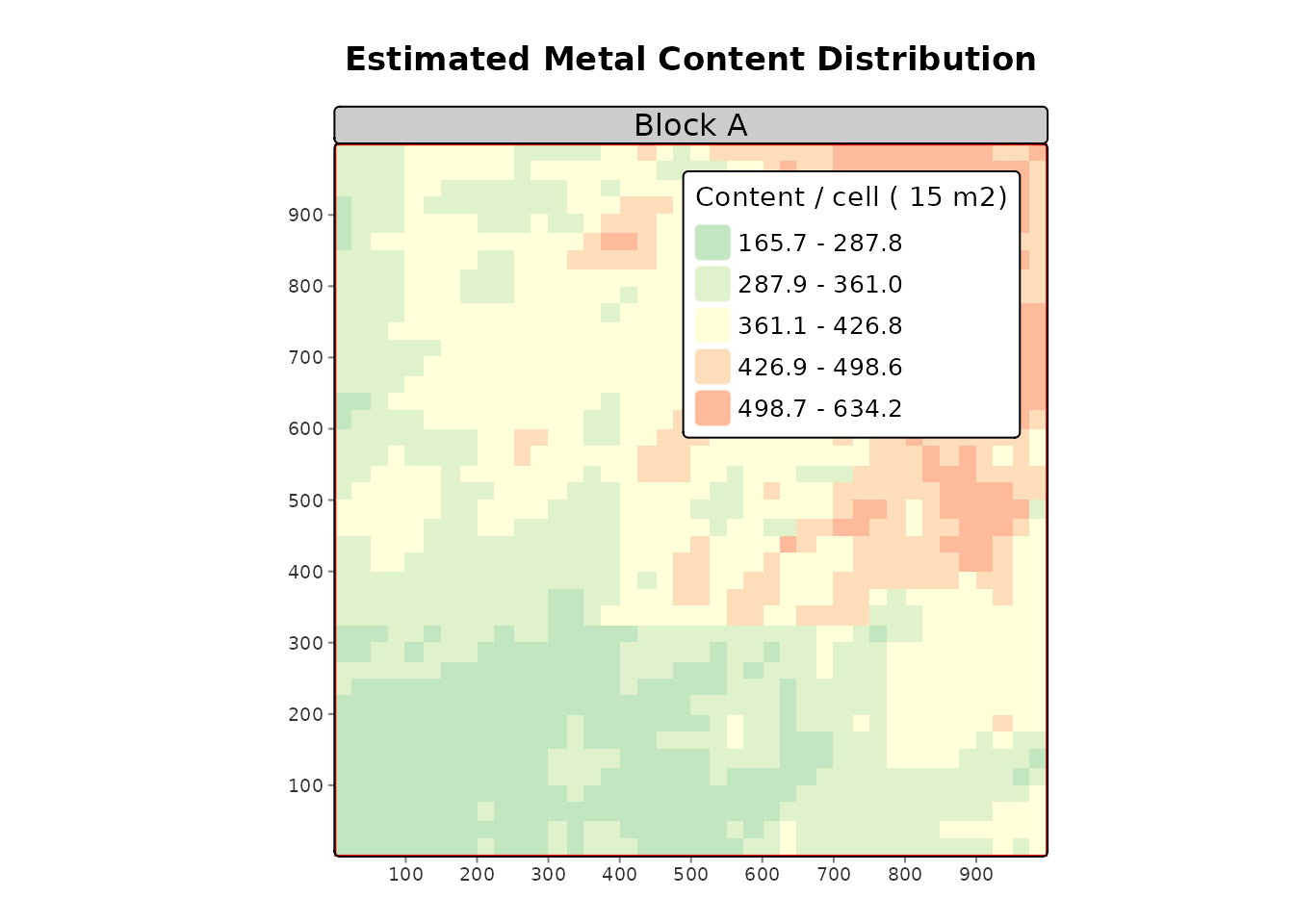

# Generate map utilizing tmap architecture
plot_res(
  tonnage_raster = my_resources$raster,
  area = area,
  title = "Estimated Metal Content Distribution",
  subtitle = "Block A"
)
#> ℹ tmap modes "plot" - "view"
#> ℹ toggle with `tmap::ttm()`
#>
#>
#> ── tmap v3 code detected ───────────────────────────────────────────────────────
#>
#> [v3->v4] `tm_raster()`: instead of `style = "kmeans"`, use col.scale =
#> `tm_scale_intervals()`.
#> ℹ Migrate the argument(s) 'style', 'palette' (rename to 'values') to
#>   'tm_scale_intervals(<HERE>)'
#> [v3->v4] `tm_raster()`: use `col_alpha` instead of `alpha`.
#> [v3->v4] `tm_raster()`: migrate the argument(s) related to the legend of the
#> visual variable `col` namely 'title' to 'col.legend = tm_legend(<HERE>)'
#> [v3->v4] `tm_layout()`: use `tm_title()` instead of `tm_layout(main.title = )`
#> [plot mode] fit legend/component: Some legend items or map compoments do not
#> fit well, and are therefore rescaled.
#> ℹ Set the tmap option `component.autoscale = FALSE` to disable rescaling.
